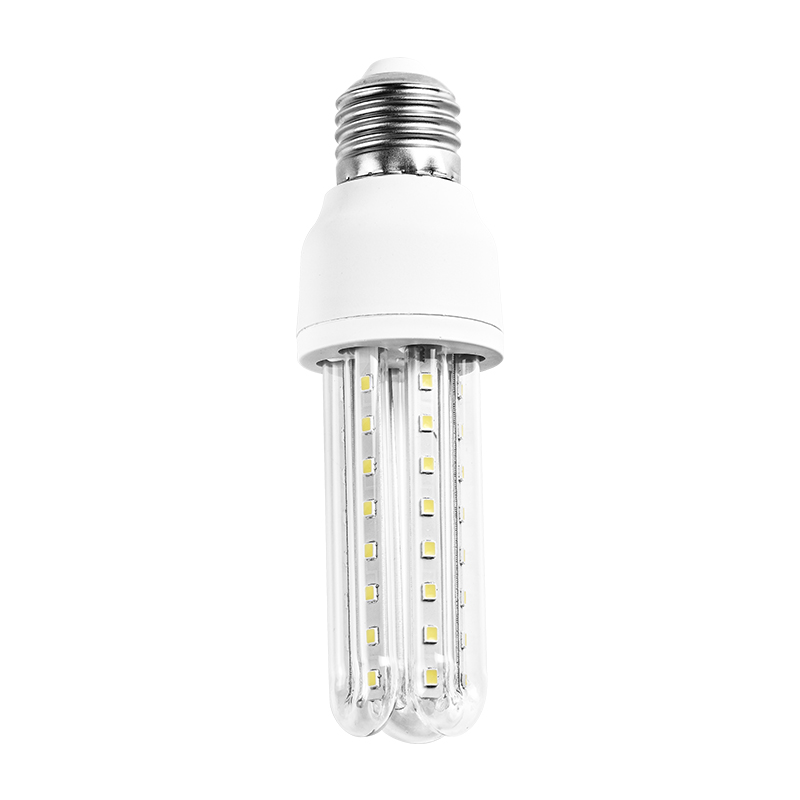

LED Bar Lamp 04

  • Waterproof/dust/mosquito proof
  • Eye protection without stroboscopic
  • A variety of wattage options

Wattage
瓦数		 Diameter Size
(cm)
灯体尺寸		 Led chip
灯珠		 Material
材料		 Voltage
电压		 PF
功率因素		 Real Power
实际功率		 Total LM
总流明		 CCT
色温		 CRI
显指
5W φ32mm*H99mm 2835-7D Aluminum
塑包铝		 165-265V ≥0.5 5.74W 500LM 3200K/6500K ≥80
10W φ36mm*H114mm 2835-10D Aluminum
塑包铝		 165-265V ≥0.5 7.74W 783LM 3200K/6500K ≥80
15W φ43mm*H133mm 2835-16D Aluminum
塑包铝		 165-265V ≥0.5 13.10W 1327LM 3200K/6500K ≥80
20W φ52mm*H150mm 2835-22D Aluminum
塑包铝		 165-265V ≥0.5 15.02W 1592LM 3200K/6500K ≥80
