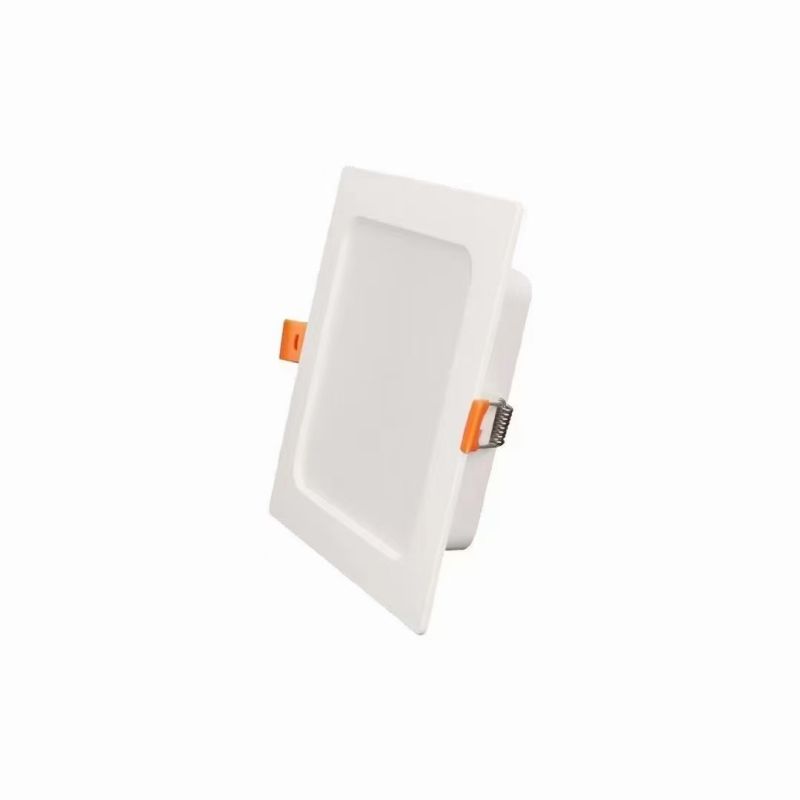

SPTD01 Down Light Concealed DOB Square

SPTD01

Down Light Concealed DOB

Square

Wattage            瓦数 Model NO.型号  Power                  初始功率 Diameter Size                               灯体尺寸 Led chip                              灯珠 Material                            材料 Voltage                              电压 PF                        功率因素 LM/W                           流明/每瓦 CCT                                                色温 CRI                                       显指
7W 3.5寸方形square 6.2W φ120 2835-24D PP 165-265V 0.5 80LM/W 6500K ≥80
9W 4寸方形square 9W φ145 2835-30D PP 165-265V 0.5 80LM/W 6500K ≥80
12W 6寸方形square 12W φ175 2835-64D PP 165-265V 0.5 80LM/W 6500K ≥80
18W 8寸方形square 17.5W φ225 2835-90D PP 165-265V 0.5 80LM/W 6500K ≥80
28W 12寸方形square 22W φ289 2835-144D PP 165-265V 0.5 80LM/W 6500K ≥80
